SPECIFICATIONS



Marine Hydraulic Steering Kit For Outboard Up To 90HP With Helm Pump Cylinder And Tubes



Product Description

High Performance Front Mount Cylinder

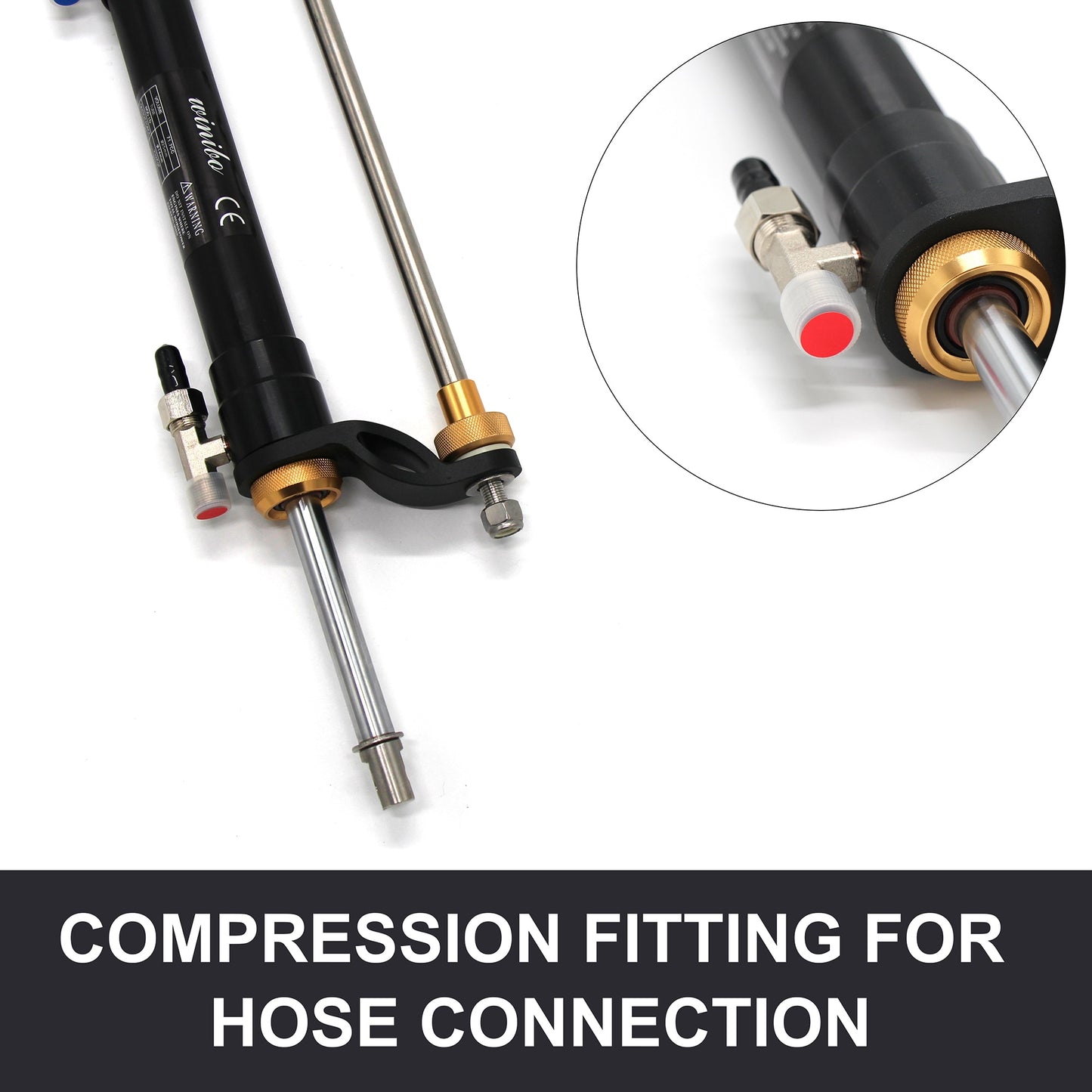

• Swiveling fittings for easy installation

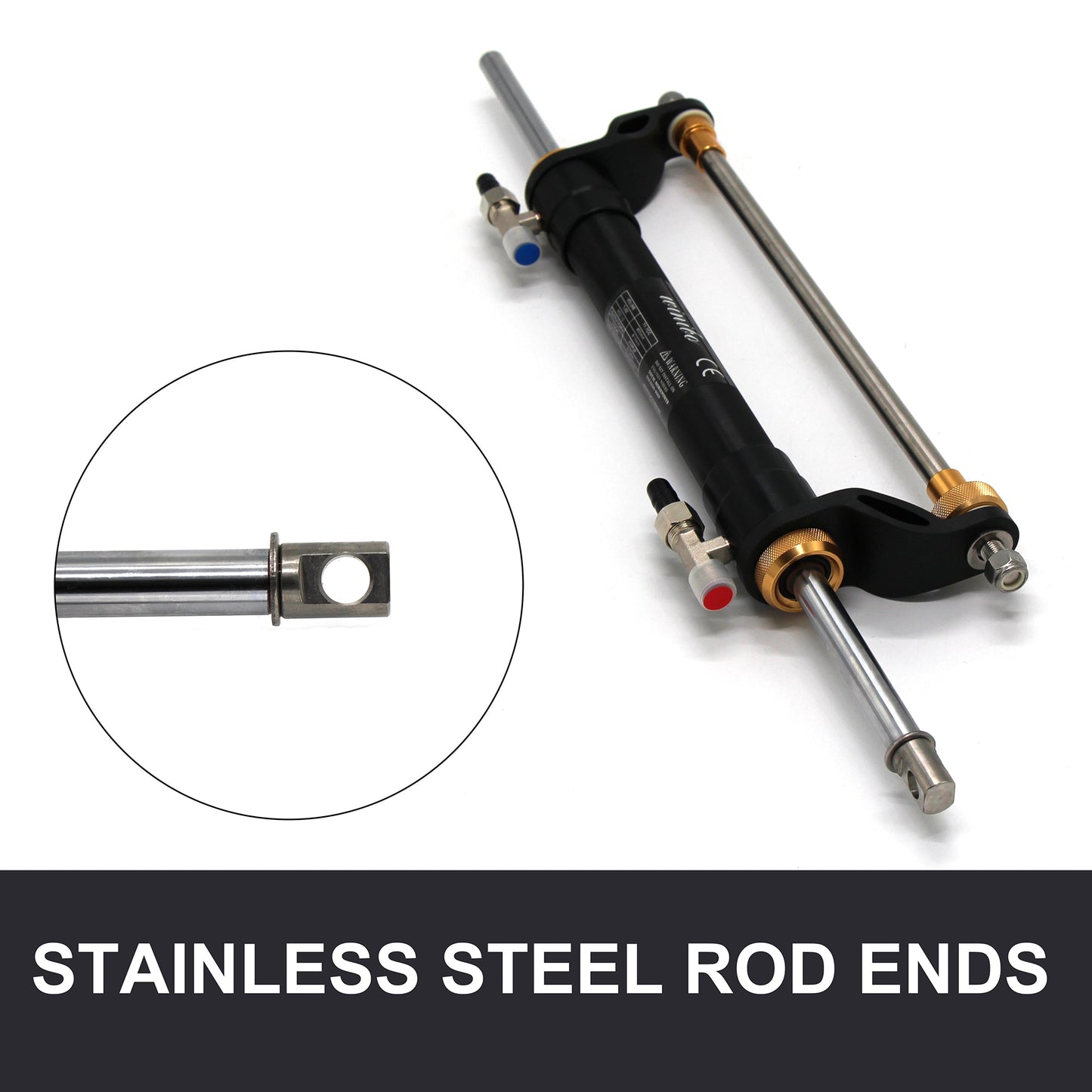

• High resistance stainless steel connection bolt

• For single engine single cylinder, up to 90 hp max



Key Features

Cylinder Specification



Volume	71.1 cc
Output Force	232 kg - 513 lbs
Cylinder I.D	25 mm - 0.98"
Piston I.D	14 mm - 0.55"
Stroke	213 mm - 8.39"
High Pressure Hose	1/4'' (6.4mm) Fittings



Product Information



Applicable Horsepower	Up To 90HP
Item Package L x W x H	‎23.6 x 11.25 x 7.16 inches
Item Weight	‎5.7 Kilograms
Material	Stainless Steel＆Aluminum alloy
Brand Name	Winibo
Item Number	‎ZA0301



Features & Details



1. 16 cc per revolution Compact helm Pump.

2. Adjustable ORB fittings for easy installation and allow for simple reorientation of the fittings after installation.

3. Unique gasket design to make the helm pump very easy to be mounted.

4. Cut to length tube kit 3/4" tapered shaft .

5. Front mounted cylinder made in high resistance stainless steel.



Product Description



Make your boat steer better than new !

Helm Mounted Hydraulic Steering systems for Boats Universally Designed for outboards rated up to 90 total Horsepower !

Compatible with such brands as Yamaha, Suzuki, Honda, Mercury, Nissan, Tohatsu and more !

Our kit is made of high quality stainless steel for years of trouble free use !

26 Foot of quality Hydraulic hose, Top mounted pump, and a ¾” tapered steering wheel shaft, guarantee a professional installation on your boat.

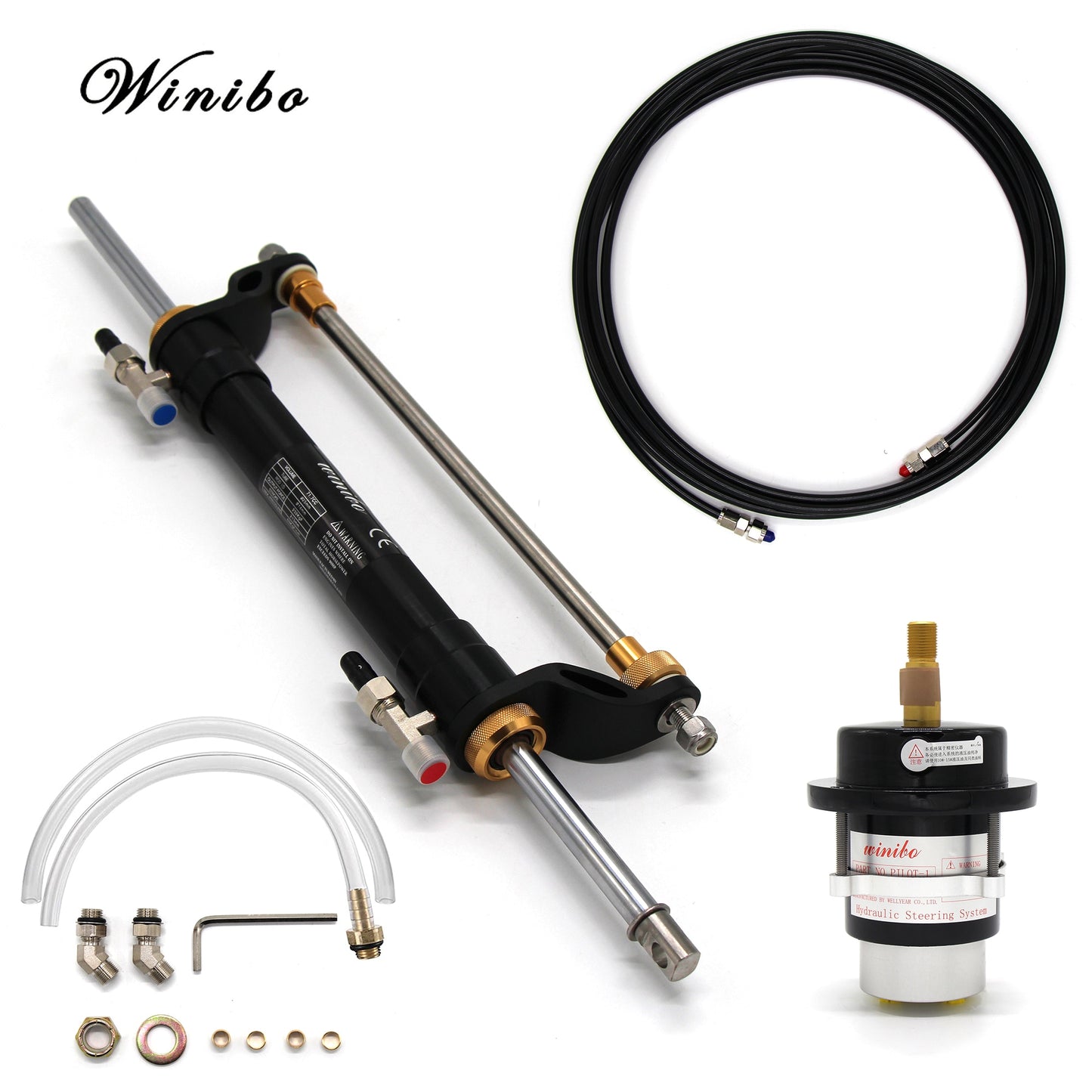

Package Content



1 x Hydraulic Pump

1 x Cylinder

2 x Tube Kit

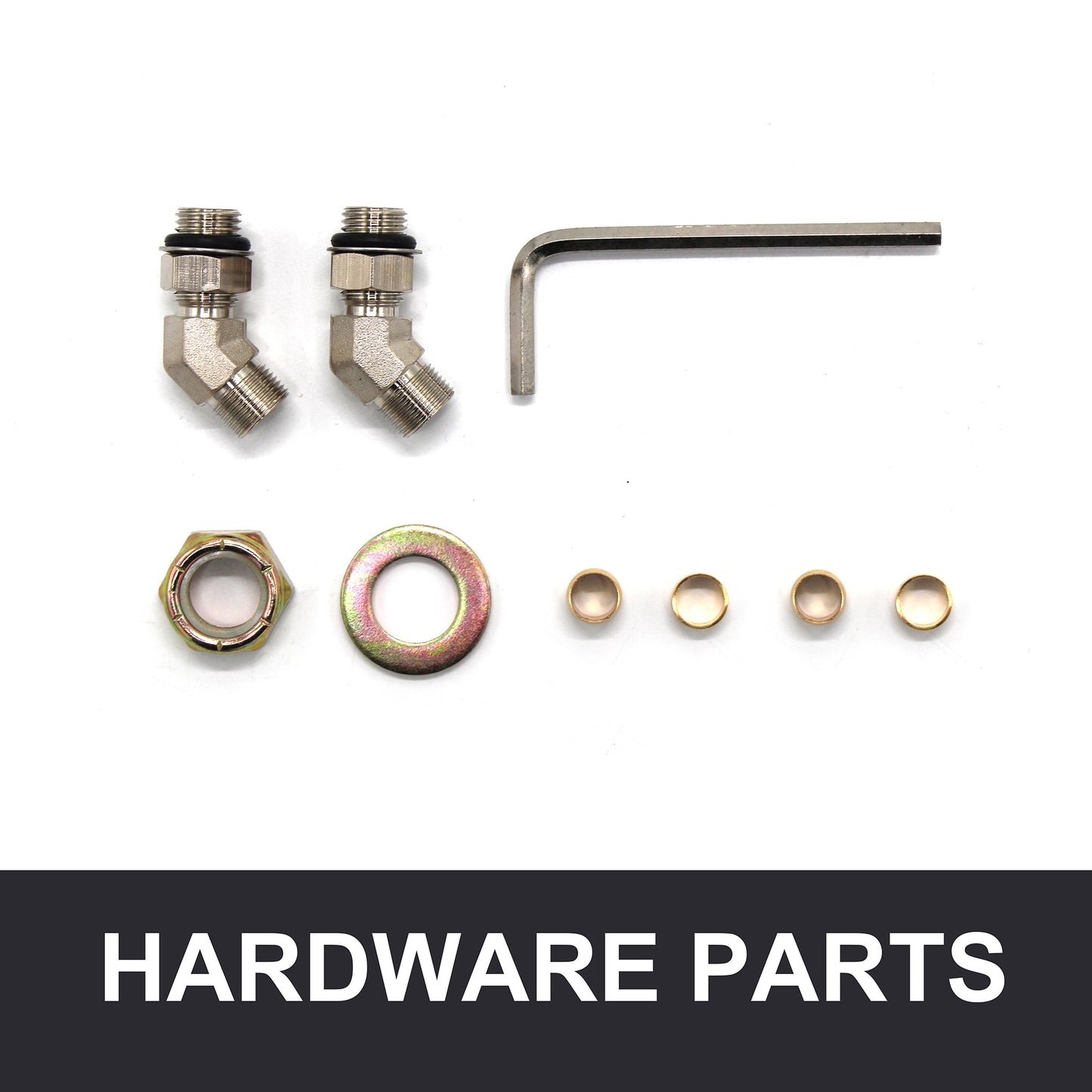

1 x Accessory Kit
