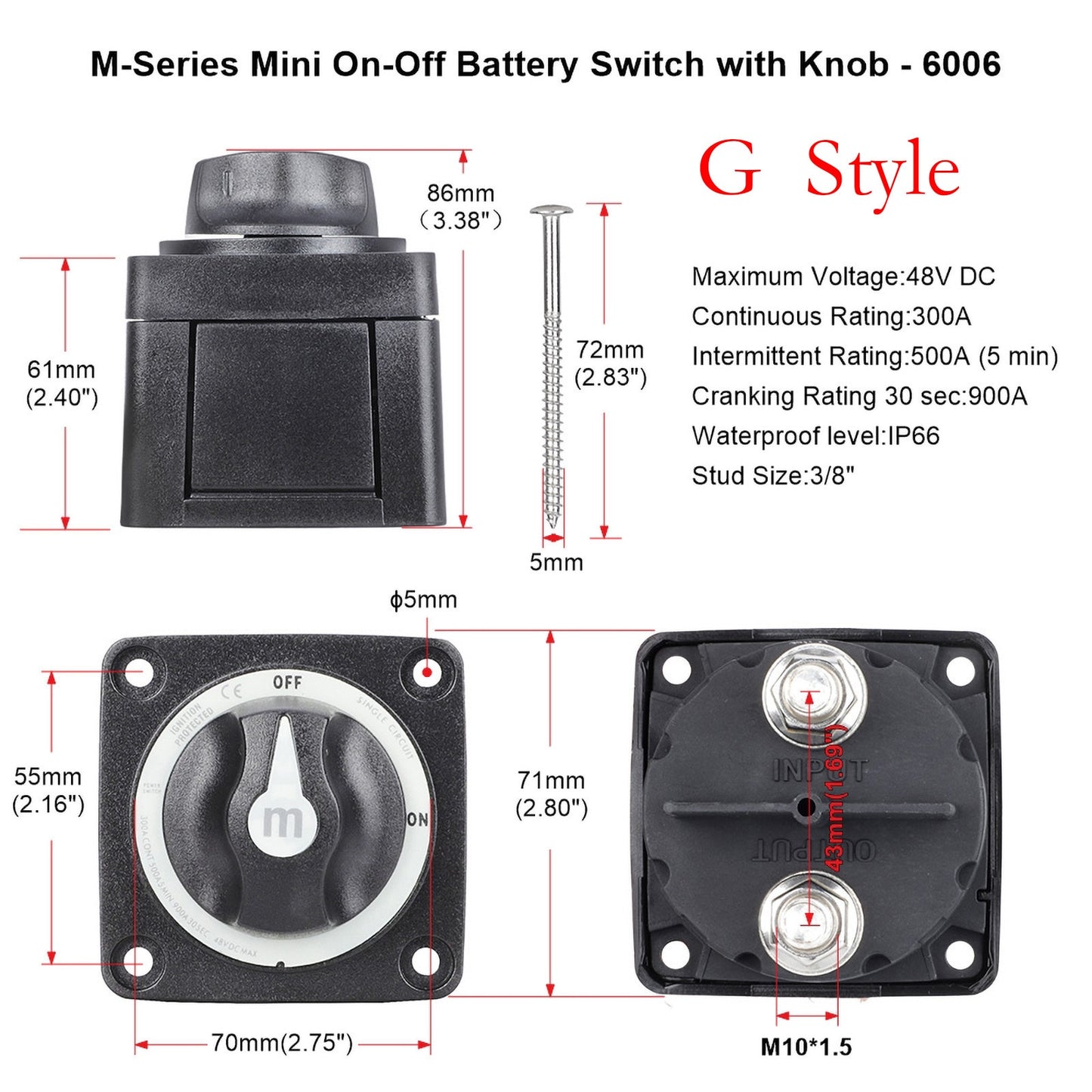

SPECIFICATIONS

Switch Type :Single Circuit ON-OFF
Switch Positions :2
Battery Combine : No
Maximum Voltage :48V DC
Stud Size :3/8''
Terminal Stud Torque :120 in-lb (13.56 Nm)
Continuous Rating :300A
Intermittent Rating :500A (5 min)
Cranking Rating 30 sec :900A
Battery Inputs :1
Cable Clearance For 4/0 AWG Cables ''1.12in (28.45 mm)
Cable Size to Meet Ratings :''4/0 AWG (120mm²)
Stud Material :''Tinned Copper
Terminal Stud Torque :''120 in-lb (13.56 Nm)
Terminal Stud Size : ''3/8'''' - 16 (M10)
