SPECIFICATIONS

85mm Waterproof TFT Screen Digital GPS Speedometer Odometer Trip COG ODO Voltmeter 9-32V with GPS Antenna Sensor Boat Auto Gauge

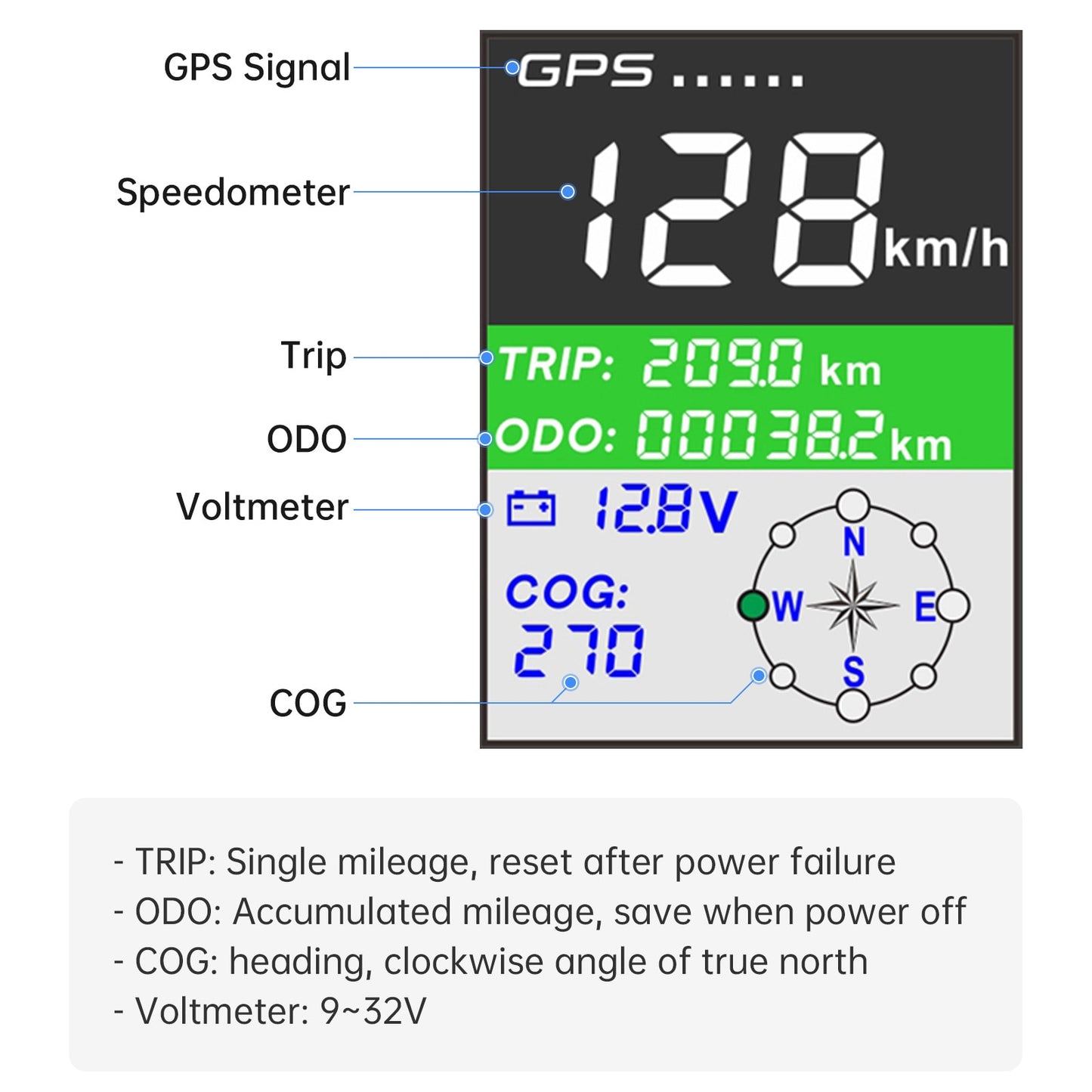

Specifications:

- SOG: Speed over the ground
- TRIP: Single mileage, reset after power failure
- ODO: Accumulated mileage, save when power off
- COG: heading, clockwise angle of true north
- Battery voltage: 9~32V
- Navigation pointer: 8 directions.
- Can freely switch kont, mph, km/h speed unit

GPS speedometer:

1 , Connect the device as picture E , the GPS speedometer will start to search GPS
signal when power on. Generally, the GPS signal will be reached within 300 seconds,
and the digital will display as counting (from 1 to 300) , also the words(GPS...) will be
flickering as well , until the GPS signal was found, the sympol(GPS) will be lighting
as normal. There will be an Error code "E02" if the GPS input was not be found
within 300 seconds.Note: (1) Trip : Total mileage of a working cycle (data will be cleared after power off) (2) ODO: Total mileage of driving (data will be recorded) 2, Operation:
a, Keep pressing the Mode button for 4 seconds to entry setting ODO data , the data
will increasing as you keep pressing , also , the data will be decreasing if you release and
press again. Data will be recorded if release for more than 3 seconds.
b, Quick press the Mode button to switch the speed unit to Kmh / MPH / Knots3,
